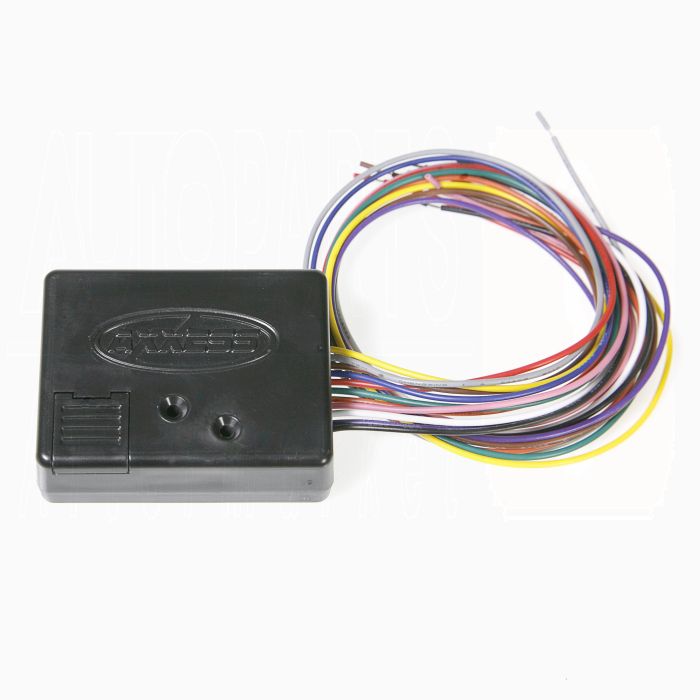

Aerpro TRIGGER Output Module

Description:

The Trigger is a universal module that provides 15 different preset functions that are activated from a positive or negative trigger. In addition to the preset features, the Trigger has 8 custom modes with customizable settings that allows the installer to utilize their imagination.

*Requires USB-CAB (sold separately) and downloaded trigger program to access custom modes

Features:

• Programmable by USB*
• 15 Preset Functions
• 8 Custom Functions
• Positive or Negative Trigger

Specs:

Default: EBrake Emulator
Mode 1: Retained accessory power
Mode 2: Delayed amp turn-on
Mode 3: Low voltage turn-on
Mode 4: Latched outputs
Mode 5: GMLAN aftermarket amp turn-on
Mode 6: Active edge pulse generator
Mode 7: Turn-off delay
Mode 8: Double pulse latch
Mode 9: Double pulse to one-second output
Mode 10: Theft detection/closed loop trigger
Mode 11: Channel expander
Mode 12: Simple data detector (amp turn-on signal from data)
Mode 13: Long delayed turn-off (for headlights)
Mode 14: Dome light delay
Mode 15: Custom program
Custom Mode 1: Channel expander/ latched
Custom Mode 2: Channel expander/ pulsed
Custom Mode 3: Delayed turn-off
Custom Mode 4: Delayed turn-on
Custom Mode 5: Delayed three-output delay/pulse width/ edge driven
(for use with linear actuators)
Custom Mode 6: Generic three-output delay/pulse width/ level driven (validity)
Custom Mode 7: Square wave-generator (sounds horns/ blinks lights)
Custom Mode 8: Multiple pulse generator
